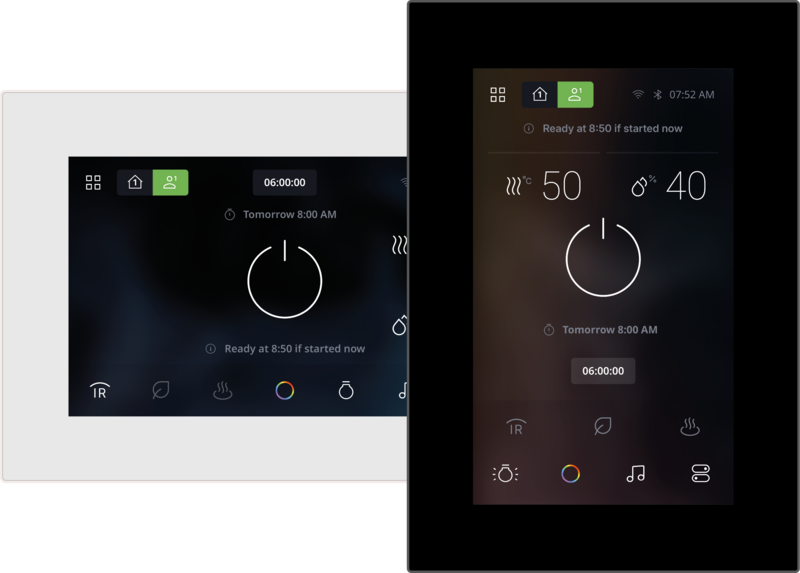

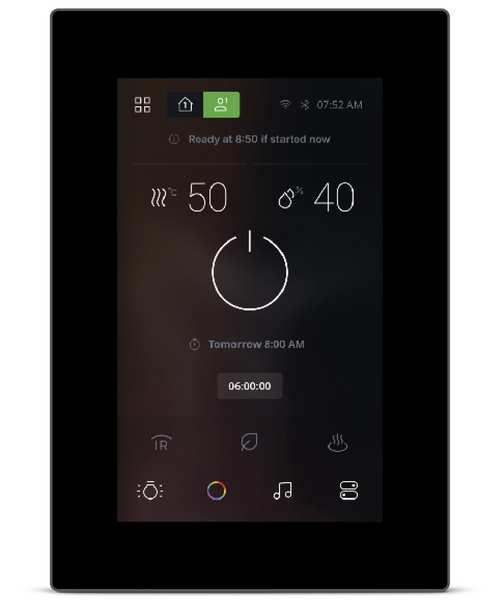

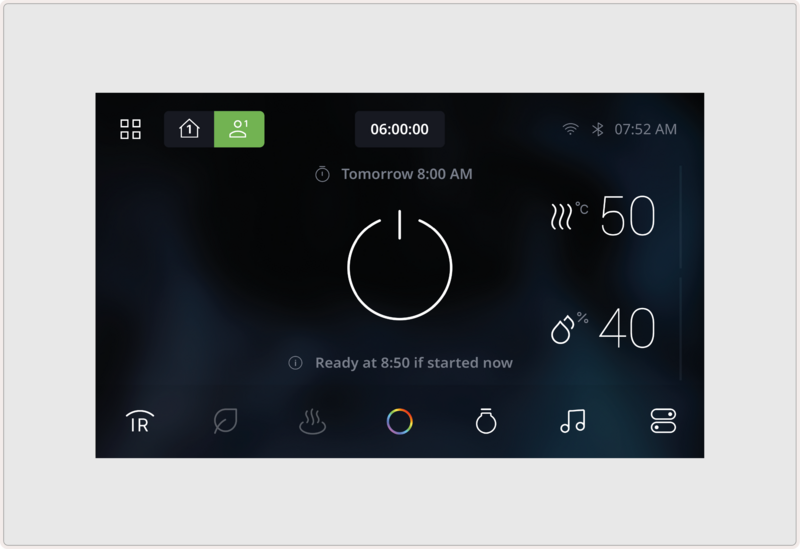

EOS U-Command

Intuitive control for sauna and steam room.

Model

Version

We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.

For technical data and documents, see the original page or send us an enquiry.

Electrical connection	400 V 3N ~ 50/60 Hz
SchaltSnaga	10,0 kW (expandable: PEB 10 / PEB 18/ PEB 36), 3,0 kW Vaporizer in Combi Modus
Temperature control range	30° - 115 °C (Finnisch) 30° - 70° C (Combi)
Preset time	24 h bzw. weekly timer with zwei Programmen per Tag
Output Light	230 V /max. 100 W, dimmbar. Ohmsche, kapazitive, induktive Last
Output Fan	230 V / max. 100 W, einstellbar
Dimensionen (H/W/D)	Control panel: 147 × 103 × 35 mm Power unit: 270 × 340 × 100 mm

Model	Version	EOS item no.
U-Command D10	crna	94 9217
U-Command D10	bela	94 9260
U-Command H10	crna	94 9218
U-Command H10	bela	94 9261
U-Command D18	crna	94 9219
U-Command D18	bela	94 9262
U-Command H18	crna	94 9220
U-Command H18	bela	94 9263
Accessory	Colour light board RGBW 40 W	94 9333
Accessory	Colour light board RGBW Extended >40 W	94 9334
Accessory	Sound board (stereo) 40 W	94 9335
Accessory	10 m connection cable Ethernet RJ45	94 9437
Accessory	25 m connection cable Ethernet RJ45	94 9438
Accessory	50 m connection cable Ethernet RJ45	94 9439
Accessory	100 m connection cable Ethernet RJ45	94 9440
SBM 2 Sauna D10		94 9509
SBM 2 Sauna H10		94 9510
SBM 2 Sauna D18		94 9511
SBM 2 Sauna H18		94 9512

According to the EOS spare parts list 2026. Prices and delivery times on request.
