Classic · Sauna heaters

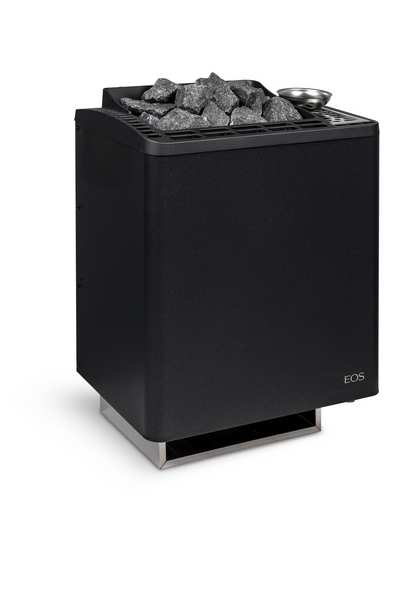

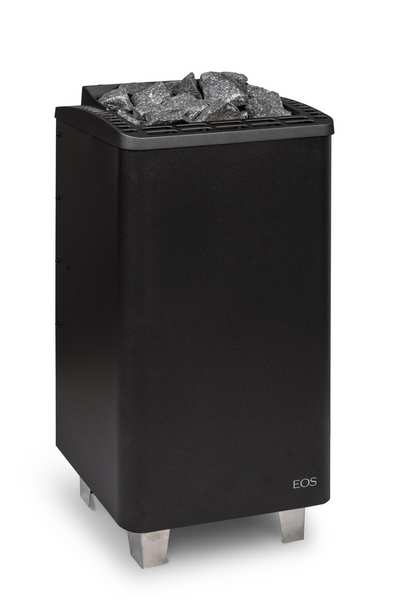

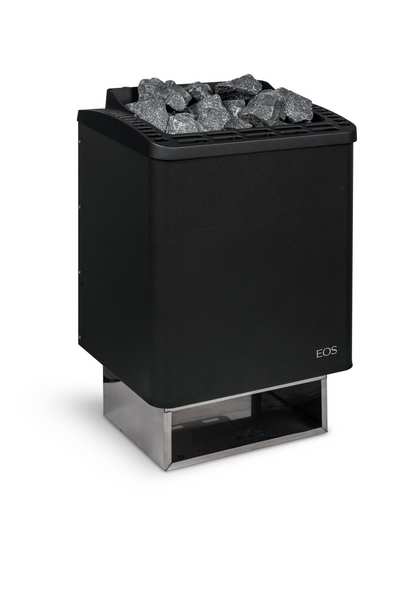

EOS ThermoTec series
Heater series for private sauna cabins.
- Power
- 6–9 kW
Power
Model
Version
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz 400V 3N / 230V 1N universal (ThermoTec) |
|---|---|
| Fuse Controller | 3 x 16 A |
| Device dimensions H/W/D (cm) | 78 / 37,5 / 38 (ThermoTec) 60 / 37,5 / 38 (ThermoTec W) 79 / 45 / 38 (ThermoTec Combi) 60 / 45 / 38 (ThermoTec Combi W) |
| For Cabin volume (6,0 / 7,5 / 9,0 kW) | 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ |
| Minimum size Be- and exhaust (6,0 / 7,5 / 9,0 kW) | 35 x 4 cm / 35 x 5 cm / 35 x 6 cm |
| Stone quantity | 18 kg/ 15 kg (Combi) |
| Power module required | ne |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS ThermoTec W | anthracite, 4 × 1,5 kW | 6,0 kW | 94 5688 | |
| EOS ThermoTec W | anthracite, 5 × 1,5 kW | 7,5 kW | 94 5689 | |
| EOS ThermoTec W | anthracite, 6 × 1,5 kW | 9,0 kW | 94 5690 | |
| EOS ThermoTec Combi W | anthracite, aluminium water tank, vaporizer 1,5 kW, 4 × 1,5 kW | 6,0 kW | 942605A | |
| EOS ThermoTec Combi W | anthracite, aluminium water tank, vaporizer 2,0 kW, 5 × 1,5 kW | 7,5 kW | 942606A | |
| EOS ThermoTec Combi W | anthracite, aluminium water tank, vaporizer 2,0 kW, 6 × 1,5 kW | 9,0 kW | 942607A | |
| EOS ThermoTec Combi W | anthracite, stainless-steel water tank, vaporizer 1,5 kW, 4 × 1,5 kW | 6,0 kW | 94 5835 | |
| EOS ThermoTec Combi W | anthracite, stainless-steel water tank, vaporizer 2,0 kW, 5 × 1,5 kW | 7,5 kW | 94 5836 | |
| EOS ThermoTec Combi W | anthracite, stainless-steel water tank, vaporizer 2,0 kW, 6 × 1,5 kW | 9,0 kW | 94 5837 | |
| EOS ThermoTec | anthracite, 4 × 1,5 kW | 6,0 kW | 94 7347 | |
| EOS ThermoTec | anthracite, 5 × 1,5 kW | 7,5 kW | 94 7346 | |
| EOS ThermoTec | anthracite, 6 × 1,5 kW | 9,0 kW | 94 7345 | |
| EOS ThermoTec Combi | anthracite, vaporizer 1,5 kW, 4 × 1,5 kW | 6,0 kW | 949323A | |
| EOS ThermoTec Combi | anthracite, vaporizer 2,0 kW, 5 × 1,5 kW | 7,5 kW | 949324A | |
| EOS ThermoTec Combi | anthracite, vaporizer 2,0 kW, 6 × 1,5 kW | 9,0 kW | 949325A |
- PDFTehnički listGerman
- PDFTehnički list (W)German
- PDFTehnički list (Combi)German
- PDFTehnički list (Combi W)German
- PDFUputstvo za montažu i upotrebuGerman
- PDFUputstvo za montažu i upotrebu (W)German
- PDFUputstvo za montažu i upotrebu (Combi)German
- PDFDeklaracija o usaglašenostiGerman
- PDFDeklaracija o usaglašenosti (Combi)German
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Heating elements | ||||
| Heating element 1500 W | 4,5 kW | 3 | 2000 8085 | |
| Heating element 1500 W | 6,0 kW | 4 | 2000 8085 | |
| Heating element 1500 W | 7,5 kW | 5 | 2000 8085 | |
| Heating element 1500 W | 9,0 kW | 6 | 2000 8085 | |
| Vaporizer (ThermoTec Combi) | ||||
| Vaporizer heating element 1500 W | 6,0 kW | 1 | 2001 3335 | |
| Vaporizer heating element 2000 W | 7,5–9,0 kW | 1 | 2001 3877 | |
| Vaporizer heating element 2000 W, za inox rezervoar | 6,0–9,0 kW | 1 | 2001 2753 | |
| Other parts | ||||
| Complete vaporizer unit 1,5 kW | E1407900 | |||
| Complete vaporizer unit 2,0 kW | E1408100 | |||
| Vaporizer cover | 1401315 | |||
| Spare tank, aluminium | 140400 | |||
| Spare tank, stainless steel | 2001 1035 | |||
| Conversion kit for stainless-steel tank 6,0 kW | 94 6228 | |||
| Conversion kit for stainless-steel tank 7,5 i 9,0 kW | 94 6229 | |||
| Drain valve | 2001 2315 | |||
| Thermostat 120° | 2001 0974 | |||
| Vaporizer buzzer and limiter | 1407300 | |||
