Standard · Sauna heaters

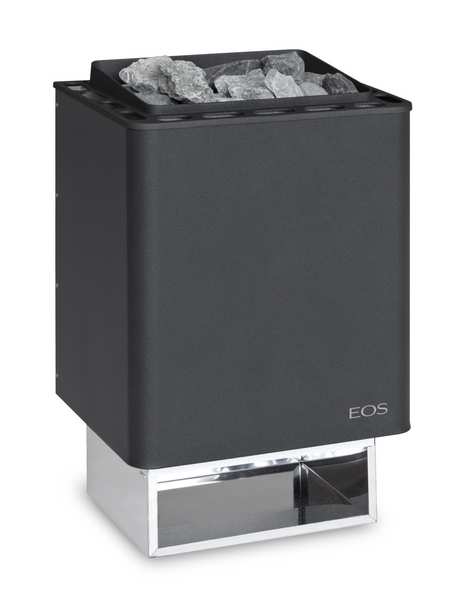

EOS Thermat series
Affordable heater for private sauna cabins.
- Power
- 4,5–9 kW
- Stones
- 15 kg
Power
Model
Version
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz 400V 3N / 230V 1N universal (Thermat W) |
|---|---|
| Fuse Controller | 3 x 16 A |
| Device dimensions H/W/D (cm) | 76 x 37,5 x 38 (Thermat) 58 x 37,5 x 38 (Thermat W) 76 x 45 x 38 (Thermat Combi) 58 x 45 x 38 (Thermat Combi W) |
| For Cabin volume (4,5 / 6,0 / 7,5 / 9,0 kW) | 4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ |
| Minimum size Be- and exhaust (4,5 / 6,0 / 7,5 / 9,0 kW) | 35 x 3 cm / 35 x 4 cm / 35 x 5 cm / 35 x 6 cm |
| Stone quantity | 15 kg |
| Power module required | ne |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS Thermat W | anthracite, 3 × 1,5 kW | 4,5 kW | 94 5862 | |
| EOS Thermat W | anthracite, 3 × 2,0 kW | 6,0 kW | 94 5863 | |
| EOS Thermat W | anthracite, 3 × 2,5 kW | 7,5 kW | 94 5735 | |
| EOS Thermat W | anthracite, 6 × 1,5 kW | 9,0 kW | 94 5864 | |
| EOS Thermat Combi W | anthracite, 4 × 1,5 kW | 6,0 kW | 94 5484 | |
| EOS Thermat Combi W | anthracite, 5 × 1,5 kW | 7,5 kW | 94 5485 | |
| EOS Thermat Combi W | anthracite, 6 × 1,5 kW | 9,0 kW | 94 5486 | |
| EOS Thermat | anthracite, 3 × 1,5 kW | 4,5 kW | 94 9316 | |
| EOS Thermat | anthracite, 3 × 2,0 kW | 6,0 kW | 94 9317 | |
| EOS Thermat | anthracite, 3 × 2,5 kW | 7,5 kW | 94 9318 | |
| EOS Thermat | anthracite, 6 × 1,5 kW | 9,0 kW | 94 9319 | |
| EOS Thermat Combi | anthracite, 4 × 1,5 kW | 6,0 kW | 94 9320 | |
| EOS Thermat Combi | anthracite, 5 × 1,5 kW | 7,5 kW | 94 9321 | |
| EOS Thermat Combi | anthracite, 6 × 1,5 kW | 9,0 kW | 94 9322 |
- PDFTehnički list (Thermat)German
- PDFTehnički list (Thermat W)German
- PDFTehnički list (Thermat Combi)German
- PDFTehnički list (Thermat Combi W)German
- PDFUputstvo za montažu i upotrebuGerman
- PDFUputstvo za montažu i upotrebu (Combi)German
- PDFDeklaracija o usaglašenostiGerman
- PDFDeklaracija o usaglašenosti (Combi)German
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Heating elements – Thermat / Thermat W | ||||
| Heating element 1500 W | 4,5 kW | 3 | 2000 8085 | |
| Heating element 2000 W | 6,0 kW | 3 | 2000 8086 | |
| Heating element 2500 W | 7,5 kW | 3 | 2000 8084 | |
| Heating element 1500 W | 9,0 kW | 6 | 2000 8085 | |
| Heating elements – Thermat Combi / Combi W | ||||
| Heating element 1500 W | 6,0 kW | 4 | 2000 8085 | |
| Heating element 1500 W | 7,5 kW | 5 | 2000 8085 | |
| Heating element 1500 W | 9,0 kW | 6 | 2000 8085 | |
| Vaporizer heating element 1500 W | 6,0–9,0 kW | 1 | 2001 3335 | |
| Other parts (Combi) | ||||
| Vaporizer cover | 2001 4710 | |||
| Spare tank, aluminium | 140400 | |||
| Spare tank, stainless steel | 2001 1035 | |||
| Drain valve | 2001 2315 | |||
| Vaporizer buzzer and limiter | 1407300 | |||
