Design · Sauna heaters
EOS Structure

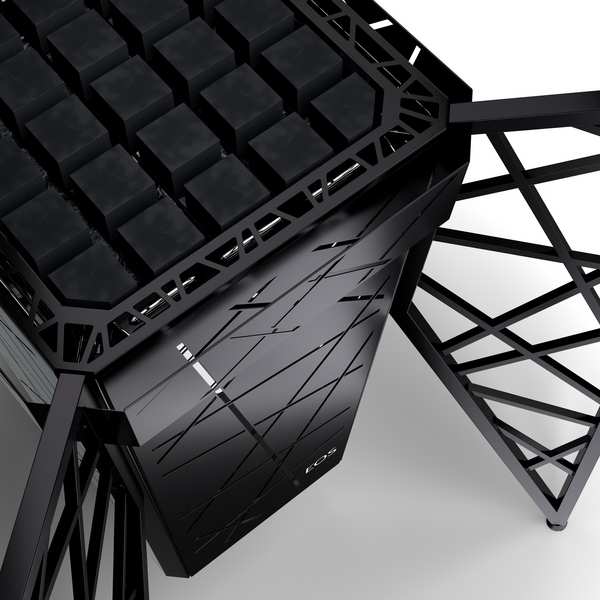

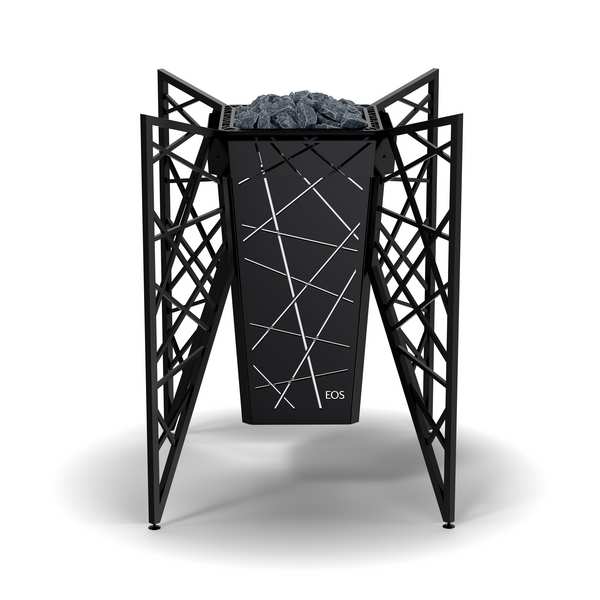

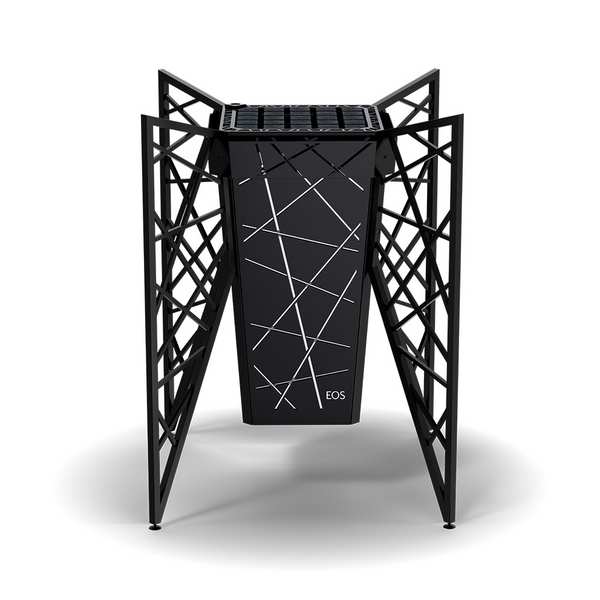

Free-standing heater for modern designer cabins.
- Power
- 6–12 kW
Power
Delivery with certification and an approved project. Heaters from the Design and Professional lines are supplied with certification and submission of the project, so that we can approve delivery and installation. Classic and Standard heaters can be ordered by anyone.
Send project for approval
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz |
|---|---|
| Device dimensions H/W/D (cm) | 102 / 70 / 70 |
| For Cabin volume (6 / 8 / 10 / 12 kW) | 6 - 8 m³ / 8 - 12 m³ / 11 - 15 m³ / 14 - 18 m³ |
| Minimum size Be- and exhaust (6 / 8 / 10 / 12 kW) | 35 x 4 cm / 35 x 5 cm / 35 x 6 cm / 35 x 8 cm |
| Weight without stones and packaging | 40 kg |
| Stone quantity | ~30 kg |
| Power module required | PEB 10 (nur 12 kW) |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS Structure | 6,0 kW | 948100 | ||
| EOS Structure | 8,0 kW | 948101 | ||
| EOS Structure | 10,0 kW | 948102 | ||
| EOS Structure | 12,0 kW | 948103 |
