Professional · Sauna heaters

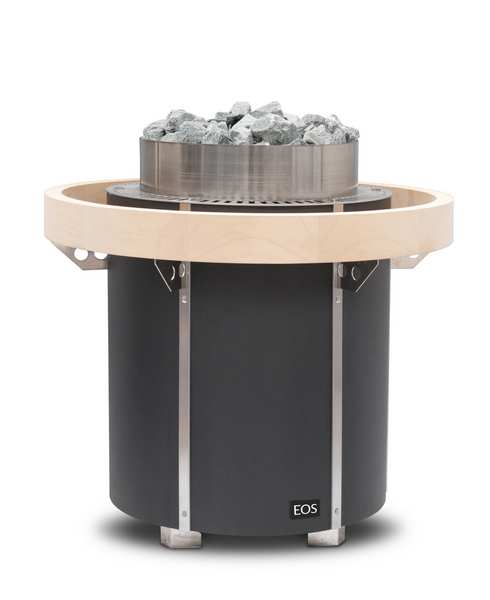

EOS Orbit
Premium free-standing heater for commercial saunas.
- Power
- 18–24 kW
Power
Delivery with certification and an approved project. Heaters from the Design and Professional lines are supplied with certification and submission of the project, so that we can approve delivery and installation. Classic and Standard heaters can be ordered by anyone.
Send project for approval
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50 Hz |
|---|---|
| Fuse Controller | 3 x 16 A |
| Fuse LSG | 3 x 16 A / 3 x 35 A (at 21 and 24 kW) |

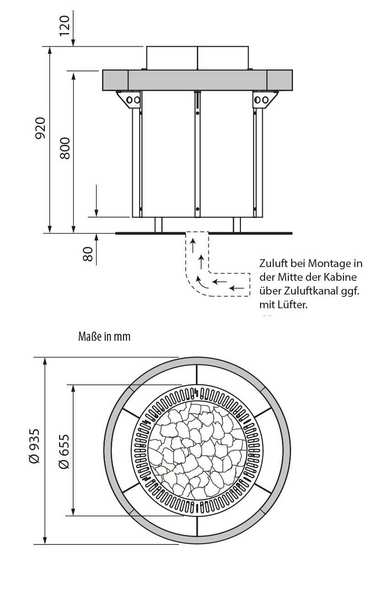

| Device dimensions (Ø × H) | 65,5 x 92 cm |
| Weight without stones and packaging | ~ 55 kg |
| Stone quantity | 40 kg |
| Power module required | PEB 10 / PEB 18 (at 21 and 24 kW) |
| Power | For Cabin volume / Minimum size Be- and exhaust |
| 18,0 kW | 24 - 30 m³ / 50 x 8 cm |
| 21,0 kW | 30 - 34 m³ / 50 x 8 cm |
| 24,0 kW | 35 - 40 m³ / 50 x 10 cm |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS Orbit | 18,0 kW | 946421 | ||
| EOS Orbit | 21,0 kW | 946422 | ||
| EOS Orbit | 24,0 kW | 946423 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Heating elements | ||||
| Heating element 3000 W | 12,0 kW | 4 | 2001 2967 | |
| Heating element 3000 W | 15,0 kW | 5 | 2001 2967 | |
| Heating element 3000 W | 18,0 kW | 6 | 2001 2967 | |
| Heating element 3000 W | 21,0 kW | 7 | 2001 2967 | |
| Heating element 3000 W | 24,0 kW | 8 | 2001 2967 | |
