Standard · Sauna heaters
EOS Invisio series
Models for concealed installation under the sauna bench.
- Power
- 3–6 kW
Power
Version
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50 /60 Hz 230 V 1N ~ 50/60 Hz (at 3,0 kW) |
|---|---|
| Fuse Controller (3 / 4,5 - 12 kW) | 1 x 16 A / 3 x 16 A |
| Device dimensions H/W/D, cm (XL) | 80 x 116 x 58 |

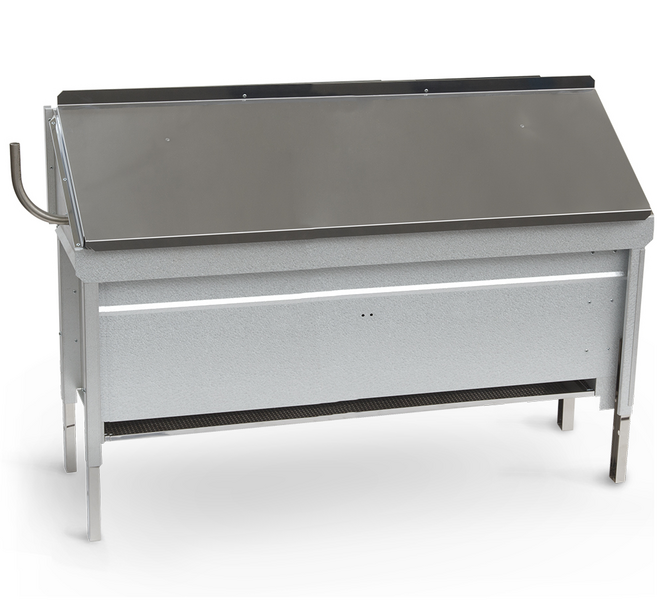

| Device dimensions H/W/D, cm (Midi) | Height 65 / 71 / 77 cm Width 116 cm Depth 38 cm |
| Device dimensions H/W/D, cm (Mini) | Height 65 / 71 / 77 cm Width 66 cm Depth 38 cm |
| For Cabin volume (3 / 4,5 / 6 / 9 / 12 kW) | 3 - 4 m³ / 4 - 6 m³ / 6 - 8 m³ / 9 - 14 m³ / 14 - 18 m³ |
| Minimum size Be- and exhaust (3 - 6 / 9 / 12 kW) | 35 x 4 cm / 35 x 6 cm / 35 x 7 cm |
| Stone quantity (Mini / Midi / XL) | 15 kg / 20 kg / 75 kg |
| PEB required (3 - 9 / 12 kW) | Ne / PEB 10 |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|

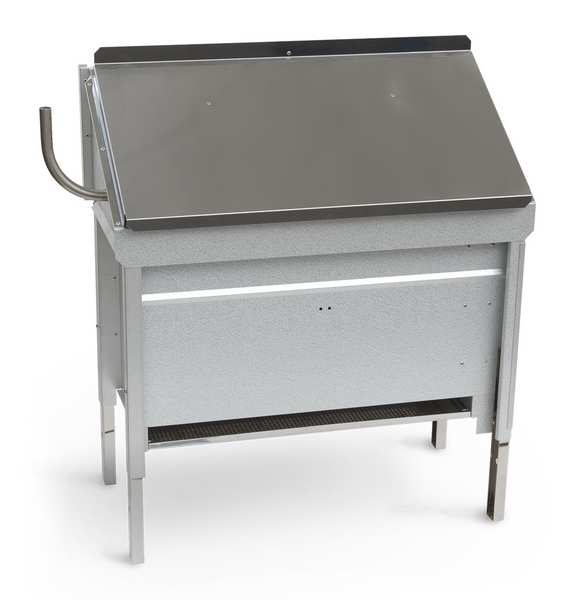

| EOS Invisio Mini | stainless steel, 2 × 1,5 kW | 3,0 kW | 94 5708 | |
| EOS Invisio Mini | stainless steel, 3 × 1,5 kW | 4,5 kW | 94 5709 | |
| EOS Invisio Mini | stainless steel, 3 × 2,0 kW | 6,0 kW | 94 5710 | |

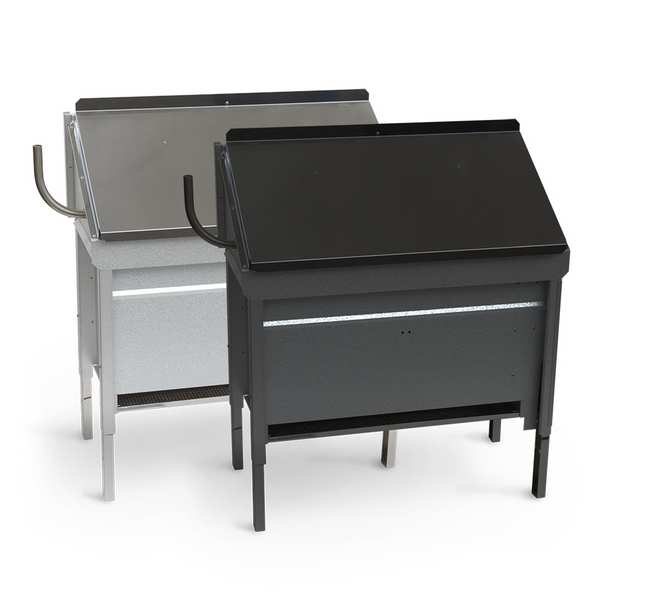

| EOS Invisio Mini | anthracite, 2 × 1,5 kW | 3,0 kW | 94 5810 | |
| EOS Invisio Mini | anthracite, 3 × 1,5 kW | 4,5 kW | 94 5811 | |
| EOS Invisio Mini | anthracite, 3 × 2,0 kW | 6,0 kW | 94 5812 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Invisio Mini | ||||
| Heating element 1500 W | 3,0 kW | 2 | 2000 7173 | |
| Heating element 1500 W | 4,5 kW | 3 | 2000 7173 | |
| Heating element 2000 W | 6,0 kW | 3 | 2000 7524 | |
| Safety grill 544 × 100 | 184200 | |||
| Invisio Midi | ||||
| Heating element 1500 W | 6,0 kW | 4 | 2000 8533 | |
| Heating element 1500 W | 9,0 kW | 6 | 2000 8533 | |
| Heating element 1500 W | 12,0 kW | 8 | 2000 8533 | |
| Invisio XL | ||||
| Heating element 1000 W | 9,0 kW | 9 | 2000 8096 | |
| Heating element 1500 W | 12,0 kW | 8 | 2000 8533 | |
| Safety grill 1200 × 100 | 69900 | |||
| External vaporizer (Invisio Vapor) | ||||
| Vaporizer heating element 2000 W | 2,0 kW | 1 | 2001 5866 | |
| Vaporizer heating element 3000 W | 3,0 kW | 1 | 2001 5867 | |
| Other parts | ||||
| Aufguss funnel (metal), for all Invisio models | 70011 | |||
