Professional · Sauna heaters

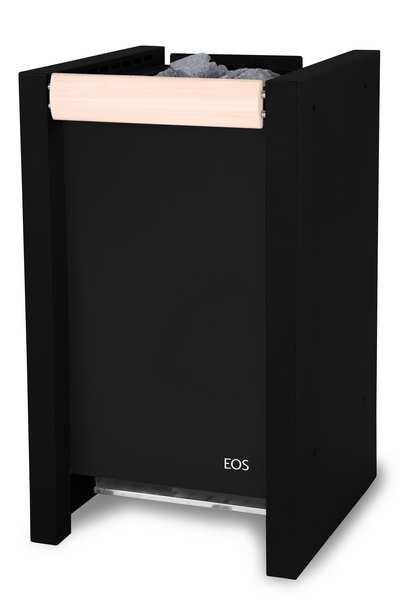

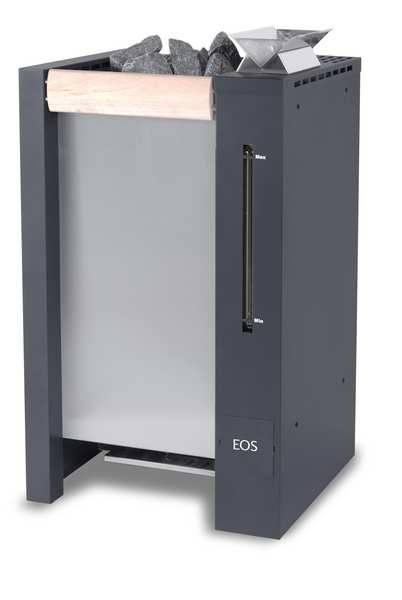

EOS Herkules S60 series
Heater series with 60 kg of stones.
- Power
- 9–15 kW
Power
Model
Delivery with certification and an approved project. Heaters from the Design and Professional lines are supplied with certification and submission of the project, so that we can approve delivery and installation. Classic and Standard heaters can be ordered by anyone.
Send project for approval
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz |
|---|---|
| Device dimensions H/W/D (cm) | 85 / 51 / 53 (S60) 85 / 53 / 53 (S60 Combi) |
| For Cabin volume (9 / 12 / 15 kW) | 9 - 14 m³ / 14 - 18 m³ / 18 - 25 m³ |
| Minimum size Be- and exhaust (9 / 12 / 15 kW) | 35 x 6 cm / 35 x 7 cm / 35 x 9 cm |
| Fuse Controller | 3 x 16 A |
| Fuse LSG (9 kW / 12 - 15 kW) | ne / 3 x 16 A |
| Stone quantity | 60 kg |
| Snagasschaltgeträt required (9 kW / 12 - 15 kW) | Ne / PEB 10 |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS Herkules S60 | 9,0 kW | 944493 | ||
| EOS Herkules S60 | 12,0 kW | 944272 | ||
| EOS Herkules S60 | 15,0 kW | 944273 | ||
| EOS Herkules S60 | 9,0 kW | 947689 | ||
| EOS Herkules S60 | 12,0 kW | 947690 | ||
| EOS Herkules S60 | 15,0 kW | 947691 | ||
| EOS Herkules S60 Combi | 9,0 kW | 944494 | ||
| EOS Herkules S60 Combi | 12,0 kW | 944270 | ||
| EOS Herkules S60 Combi | 15,0 kW | 944271 | ||
| EOS Herkules S60 Combi | 9,0 kW | 947676 | ||
| EOS Herkules S60 Combi | 12,0 kW | 947677 | ||
| EOS Herkules S60 Combi | 15,0 kW | 947678 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Heating elements – Herkules S60 | ||||
| Heating element 1000 W | 9,0 kW | 9 | 2001 1599 | |
| Heating element 1333 W | 12,0 kW | 9 | 2001 1598 | |
| Heating element 1333 W | 15,0 kW | 11 | 2001 1598 | |
| Heating elements – Herkules S60 Combi | ||||
| Heating element 1000 W | 9,0 kW | 9 | 2001 1599 | |
| Heating element 1333 W | 12,0 kW | 9 | 2001 1598 | |
| Heating element 1666 W | 15,0 kW | 9 | 2001 3763 | |
| Vaporizer heating element 2000 W | 9,0–15,0 kW | 1 | 2001 2396 | |
