Standard · Sauna heaters

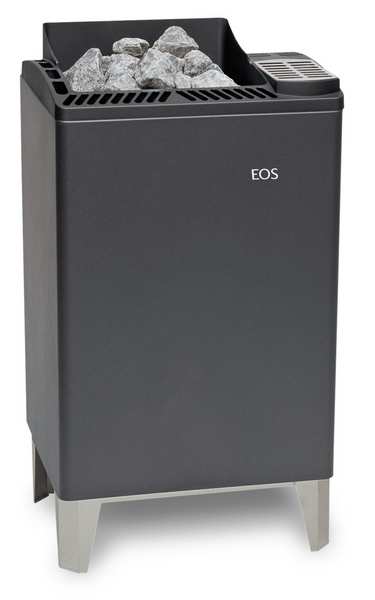

EOS EuroMax series
High-quality free-standing heater for demanding private and commercial use.
- Power
- 9–15 kW
Power
Model
Version
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz |
|---|---|
| Fuse Controller | 3 x 16 A |
| Fuse LSG (9,0 kW / 12,0 - 15,0 kW) | ne / 3 x 16 A |
| Device dimensions H/W/D (cm) | 92,5 / 50 / 50 |
| For Cabin volume (9,0 / 12,0 / 15,0 kW) | 9 - 14 m³ / 14 - 18 m³ / 18 - 25 m³ |
| Minimum size Be- and exhaust (9,0 / 12,0 / 15,0 kW) | 35 x 6 cm / 35 x 7 cm / 35 x 9 cm |
| Weight without stones and packaging | 49 kg |
| Stone quantity | 60 kg |
| Power module required (9,0 kW / 12,0 - 15,0 kW) | Ne / PEB 10 |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS EuroMax | anthracite, single-circuit connection, 9 × 1,0 kW | 9,0 kW | 94 2320 | |
| EOS EuroMax | anthracite, single-circuit connection, 9 × 1,33 kW | 12,0 kW | 94 3735 | |
| EOS EuroMax | anthracite, single-circuit connection, 11 × 1,33 kW | 15,0 kW | 94 6202 | |
| EOS EuroMax | anthracite, two-circuit connection, 9 × 1,33 kW | 12,0 kW | 94 2321 | |
| EOS EuroMax | anthracite, two-circuit connection, 11 × 1,33 kW | 15,0 kW | 94 3882 | |
| Accessory | Mounting brackets for guard rail | 94 4595 | ||
| EOS EuroMax Combi | anthracite, single-circuit connection, 9 × 1,0 kW | 9,0 kW | 94 2317 | |
| EOS EuroMax Combi | anthracite, single-circuit connection, 9 × 1,33 kW | 12,0 kW | 94 8835 | |
| EOS EuroMax Combi | anthracite, single-circuit connection, 9 × 1,67 kW | 15,0 kW | 94 6312 | |
| EOS EuroMax Combi | anthracite, two-circuit connection, 9 × 1,33 kW | 12,0 kW | 94 2318 | |
| EOS EuroMax Combi | anthracite, two-circuit connection, 9 × 1,67 kW | 15,0 kW | 94 3922 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Heating elements – EuroMax | ||||
| Heating element 1000 W | 9,0 kW | 9 | 2001 1599 | |
| Heating element 1333 W | 12,0 kW | 9 | 2001 1598 | |
| Heating element 1333 W | 15,0 kW | 11 | 2001 1598 | |
| Heating elements – EuroMax Combi | ||||
| Heating element 1333 W | 6,7 kW | 5 | 2001 1598 | |
| Heating element 1000 W | 9,0 kW | 9 | 2001 1599 | |
| Heating element 1333 W | 12,0 kW | 9 | 2001 1598 | |
| Heating element 1666 W | 15,0 kW | 9 | 2001 3763 | |
| Vaporizer heating element 1500 W | 6,7 kW | 1 | 2001 2780 | |
| Vaporizer heating element 2000 W | 9,0–15,0 kW | 1 | 2001 2396 | |
| Other parts (Combi) | ||||
| Complete heating insert 9,0 kW | 134712 | |||
| Complete heating insert 12,0 kW | 134811 | |||
| Complete heating insert 15,0 kW | 134881 | |||
| Water level tube (staklo) | 2001 2193 | |||
| Spare tank | 131711 | |||
| Drain valve | 2000 8563 | |||
| Vaporizer safety temperature limiter | 2001 3013 | |||
