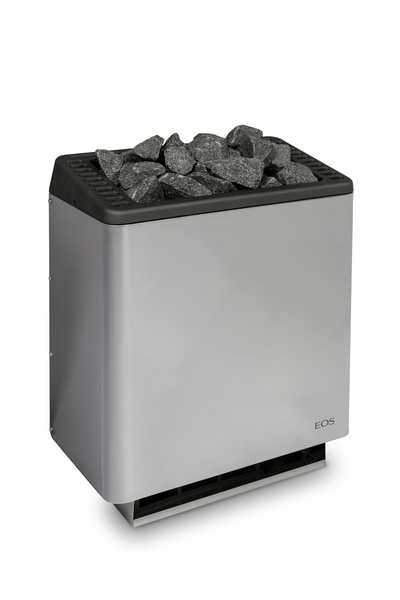

EOS Euro

High-quality heater for private and commercial saunas.

Power

Model

Version

We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.

For technical data and documents, see the original page or send us an enquiry.

Electrical connection	400 V 3N ~ 50/60 Hz
Fuse Controller	3 x 16 A
Fuse LSG	Ne / 3 x 16 A (at 12,0 kW)

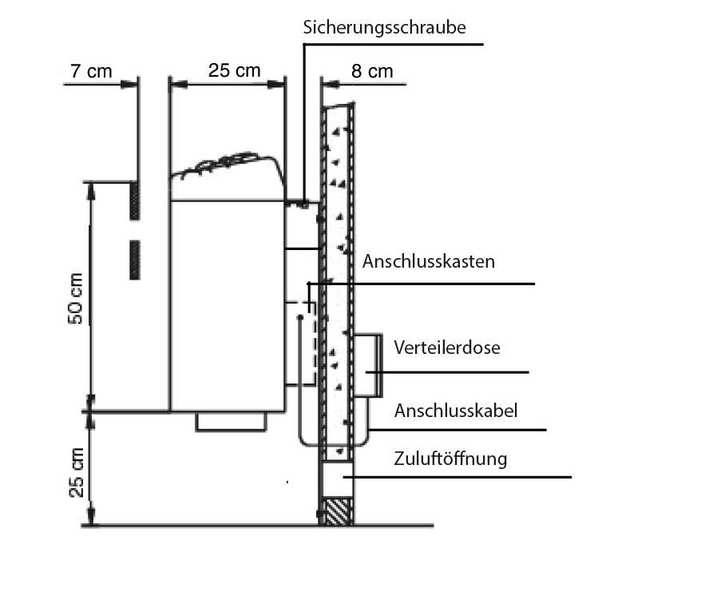

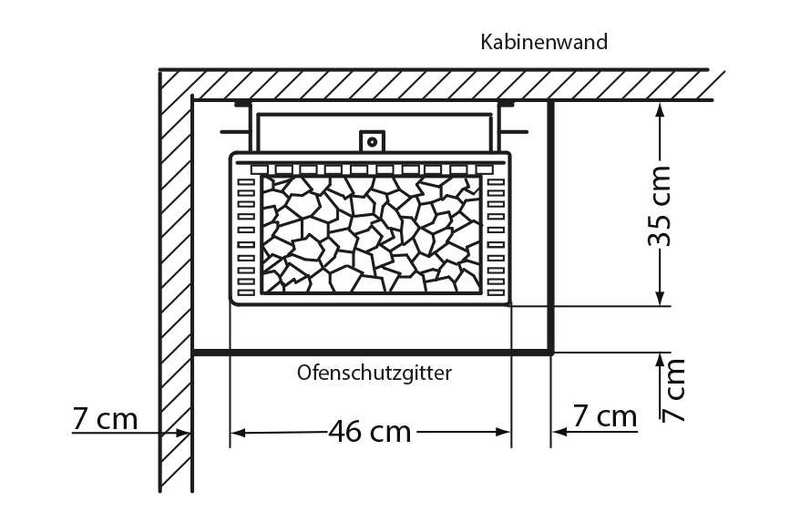

Device dimensions H/W/D (cm)	61 (74) / 46 / 35 (height incl. feet)
For Cabin volume (6,0 / 7,5 / 9,0 / 10,0 / 12,0 kW)	6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ / 11 - 16 m³ / 14 - 18 m³
Minimum size Be- and exhaust (6,0/ 7,5 / 9,0 / 10,0 /m 12,0 kW)	35 x 5 cm / 35 x 5 cm / 35 x 5 cm / 35 x 7 cm / 35 x 7 cm
Weight without stones and packaging (6,0 / 7,5 / 9,0 / 10,0 / 12,0 kW)	18 kg / 18 kg / 18 kg / 19,5 kg / 19,5 kg
Stone quantity	15,0 kg
Power module required	Ne / PEB 10 (at 12,0 kW)

Model	Version	Power	EOS item no.
EOS Euro	stainless steel, single-circuit connection, 3 × 2,0 kW	6,0 kW	90 7685
EOS Euro	stainless steel, single-circuit connection, 3 × 2,5 kW	7,5 kW	90 7686
EOS Euro	stainless steel, single-circuit connection, 6 × 1,5 kW	9,0 kW	90 7687
EOS Euro	stainless steel, single-circuit connection, 6 × 1,66 kW	10,0 kW	94 7886
EOS Euro	stainless steel, single-circuit connection, 6 × 2,0 kW	12,0 kW	94 4105
EOS Euro	stainless steel, two-circuit connection, 6 × 2,0 kW	12,0 kW	90 8076
Accessory	Feet for floor installation		90 7110

According to the EOS spare parts list 2026. Prices and delivery times on request.

Part	For heater power	Qty	EOS item no.
Heating elements
Heating element 1500 W	4,5 kW	3	2000 8085
Heating element 2000 W	6,0 kW	3	2000 8086
Heating element 2500 W	7,5 kW	3	2000 8084
Heating element 1500 W	9,0 kW	6	2000 8085
Heating element 1666 W	10,0 kW	6	2001 7026
Heating element 1500 W	10,5 kW	3	2000 8085
Heating element 2000 W	10,5 kW	3	2000 8086
Heating element 2000 W	12,0 kW	6	2000 8086
