Classic · Control units

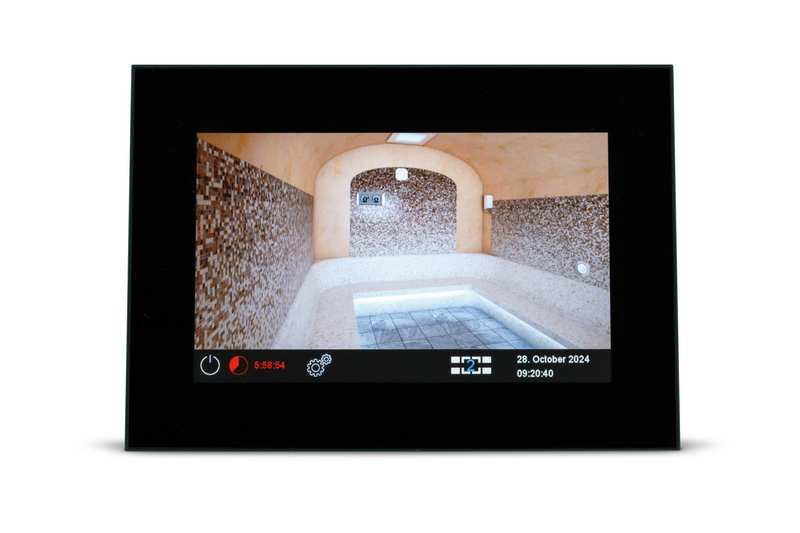

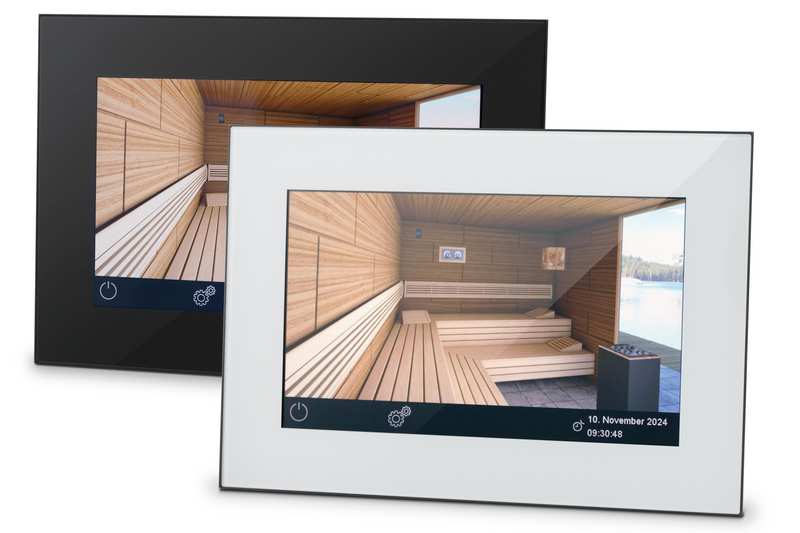

EOS EmoTouch 3
Touch control for sauna and steam room.
Model
Version
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz |
|---|---|
| SchaltSnaga | 10,0 kW (expandable: PEB 10 / PEB 18 / PEB 36), 3,0 kW Vaporizer in humid mode |
| Temperature control range | 30° - 115°C (Finnisch) 30° - 70° C (Combi) |
| Humidity control | Time-proportional or optionally via humidity sensor (rel. %). |
| Heating time limit | 6 h, 12 h, unlimited |
| Preset time | 24 h bzw. weekly timer |
| Output Light | 230 V /max. 100 W, dimmbar. Ohmsche, kapazitive, induktive Last |
| Output Fan | 230 V / max. 100 W, einstellbar |
| Sensor | Digital, with 5 m cable. Bench sensor optional |
| Control panel (H/W/D) | 142 x 202 x 42 mm |
| 946991 | EOS EmoTouch 3 black (Hammam) |
| 946992 | EOS EmoTouch 3 white (Hammam) |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EmoTouch 3 Sauna | crna | 94 6504 | ||
| EmoTouch 3 Sauna | bela | 94 6505 | ||
| EmoTouch 3 Hammam | crna | 94 6991 | ||
| EmoTouch 3 Hammam | bela | 94 6992 | ||
| SBM-LSG-Sauna | 94 6640 | |||
| SBM-LSG-RB (Hammam) | 3 x 3 kW / 400V | 94 6672 | ||
| SBM-LSG-Steam | 94 6967 | |||
| SBM-LSG-IR | 3500 W / 230V | 94 6965 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| EmoTouch 3 | ||||
| Control panel, white | 94 6694 | |||
| Control panel, black | 94 6673 | |||
| Common parts EmoTec / EmoStyle / EmoTouch | ||||
| Relay box D | ET2001 5813 | |||
| Relay box H | ET2001 5814 | |||
| Bench sensor board | 142200 | |||
| Heater sensor board | 2001 5107 | |||
| Humidity sensor board | 2001 5108 | |||
| Safety temperature limiter | 2001 5110 | |||
