Classic · Control units
EOS EmoStyle series
Control unit with Wi-Fi and cloud connectivity.
Model
Version
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz |
|---|---|
| SchaltSnaga | 10,0 kW (expandable with LSG: PEB 10 / PEB 18 / PEB 36) |
| Temperature control range | 30° - 115°C (Finnisch) 30° - 70° C (Combi) |
| Heating time limit | 6 h, 12 h, unlimited |
| Preset time | 24 h bzw. weekly timer |
| Output Light | 230 V, ohmsche, kapazitive, induktive Last. |
| Output Fan | 230 V / max. 150 W, einstellbar |
| Sensor | Digital, with 5 m cable. Bench sensor optional |
| Control panel (H/W/D) | 132 x 135 x 25 mm Einbaumontage (Aufbau optional) |
| Snagasteil (H/W/D) | 270 x 300 x 100 mm Wall mounting |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EmoStyle D | crna | 94 6314 | ||
| EmoStyle D | bela | 94 6316 | ||
| EmoStyle H | crna | 94 6319 | ||
| EmoStyle H | bela | 94 6315 | ||
| EmoStyle D Cloud | crna | 94 9351 | ||
| EmoStyle D Cloud | bela | 94 9350 | ||
| EmoStyle H Cloud | crna | 94 9353 | ||
| EmoStyle H Cloud | bela | 94 9352 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| EmoStyle | ||||

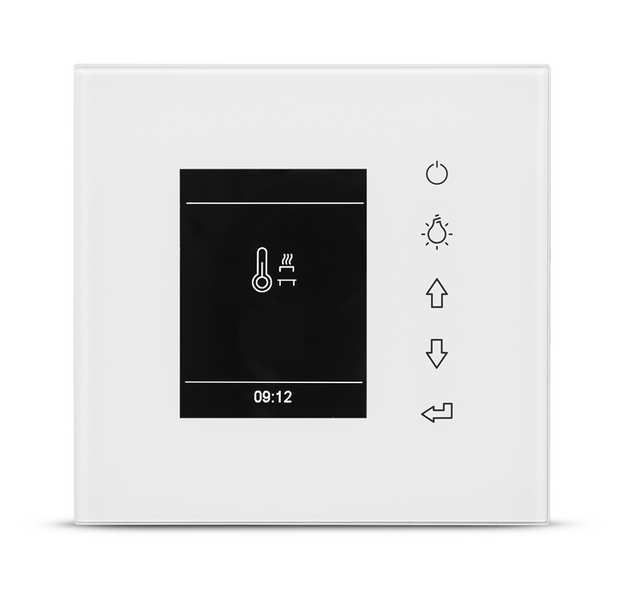

| Control panel, white | ET94 6318 | |||
| Control panel, black | ET94 6320 | |||
| Common parts EmoTec / EmoStyle / EmoTouch | ||||
| Relay box D | ET2001 5813 | |||
| Relay box H | ET2001 5814 | |||
| Bench sensor board | 142200 | |||
| Heater sensor board | 2001 5107 | |||
| Humidity sensor board | 2001 5108 | |||
| Safety temperature limiter | 2001 5110 | |||
| EOS Cloud | ||||
| Cloud relay box EmoTec/EmoStyle H – retrofit kit | 94 9557 | |||
| Cloud relay box – without accessories | 94 9558 | |||
| Cloud pairing button | 94 9559 | |||
