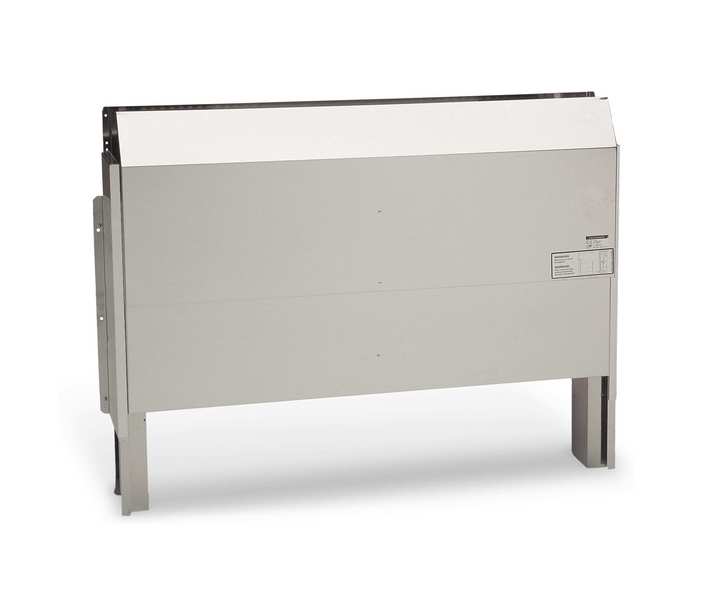

EOS 46.U series

Models for installation behind the cabin wall.

Power

Version

We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.

For technical data and documents, see the original page or send us an enquiry.

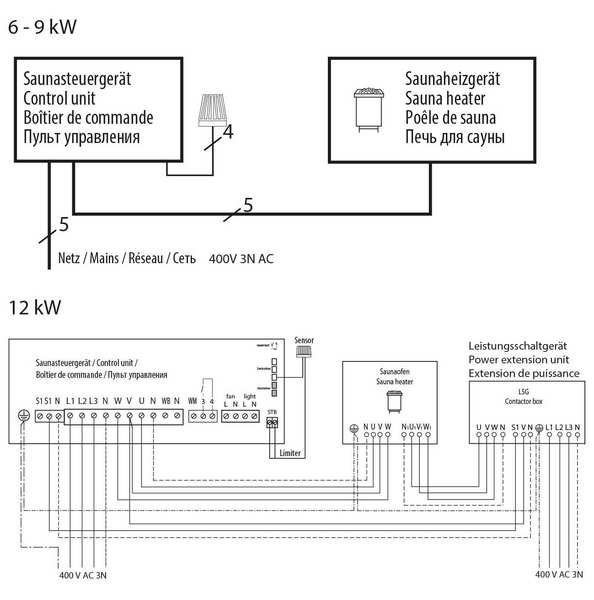

Electrical connection	400 V 3N ~ 50/60 Hz
Fuse Controller	3 x 16 A
Device dimensions H/W/D (cm)	87 / 92 / 20 (46.U Compact) 87 / 112 / 20 (46.U) 100 / 112 / 20 (46.U Combi)
For Cabin volume (6,0 / 7,5 / 9,0 / 12,0 kW)	6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ / 14 - 18 m³
Minimum size Be- and exhaust (6,0 / 7,5 / 9,0 / 12,0 kW)	35 x 4 cm / 35 x 5 cm / 35 x 6 cm / 35 x 7 cm
Stone quantity	10 kg (Compact) / 15 kg
PEB required	Ne / PEB 10 (nur at 12,0 kW)

Model	Version	Power	EOS item no.

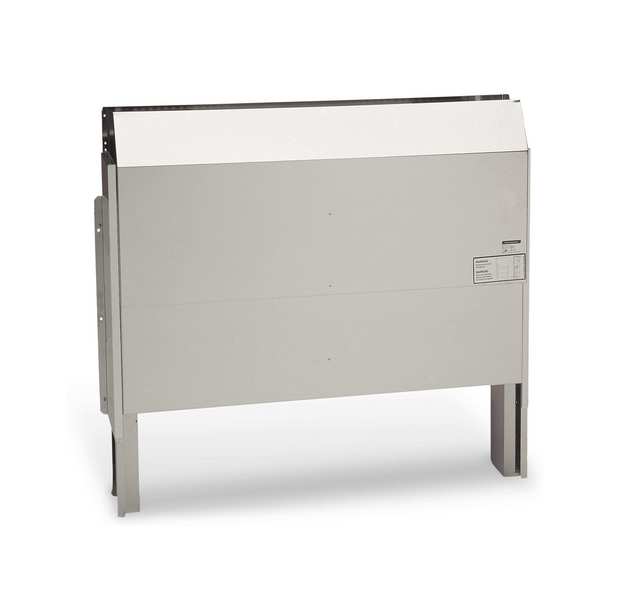

EOS 46.U Compact	stainless steel, 4 × 1,5 kW	6,0 kW	94 6707
EOS 46.U Compact	stainless steel, 5 × 1,5 kW	7,5 kW	94 4250

According to the EOS spare parts list 2026. Prices and delivery times on request.

Part	For heater power	Qty	EOS item no.
Heating elements – 46.U
Heating element 1000 W	6,0 kW	6	2000 8096
Heating element 1000 W	8,0 kW	8	2000 8096
Heating element 1000 W	9,0 kW	9	2000 8096
Heating element 1500 W	12,0 kW	8	2000 8533
Heating element 1500 W, from January 2011	6 / 7,5 / 9 / 12 kW	4 / 5 / 6 / 8	2000 8533
46.U Compact
Heating element 1500 W	7,5 kW	5	2001 0894
Safety grill 1000 × 200 mm			70720
46.U Combi
Heating element 1000 W	6,0 kW	6	2001 0888
Heating element 1000 W	8,0 kW	8	2001 0888
Heating element 1000 W	9,0 kW	9	2001 0888
Heating element 1500 W	12,0 kW	8	2001 0894
Heating element 1500 W, from January 2011	6 / 7,5 / 9 / 12 kW	4 / 5 / 6 / 8	2001 0894
Vaporizer heating element 1500 W	6,0–9,0 kW	1	2000 9433
Vaporizer heating element 2000 W, from March 2015	12,0 kW	1	2001 2753
Other parts
Safety grill 1200 × 200 mm			69995
Aufguss funnel (drvo), for all 46.U models			2000 8118
Wiring harness	6,0 kW		ET18004887
Wiring harness	9,0 kW		ET18004889
Wiring harness	12,0 kW		ET18008608
