Professional · Sauna heaters

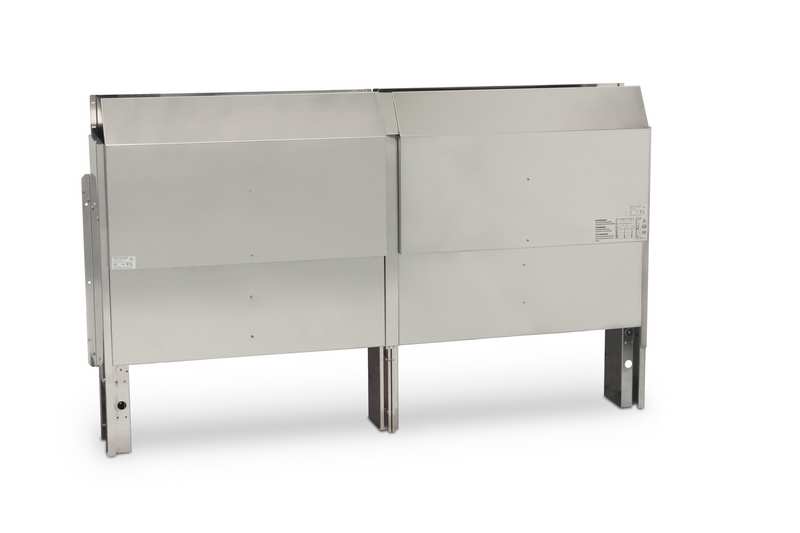

EOS 46.U XL
Models for installation behind the wall, for large cabins.
- Power
- 15–18 kW
Power
Delivery with certification and an approved project. Heaters from the Design and Professional lines are supplied with certification and submission of the project, so that we can approve delivery and installation. Classic and Standard heaters can be ordered by anyone.
Send project for approval
We send the price, availability and delivery time in reply to your enquiry, usually the same or the next working day.
Data is being transferred from the EOS catalogue.
For technical data and documents, see the original page or send us an enquiry.
| Electrical connection | 400 V 3N ~ 50/60 Hz |
|---|---|
| Fuse Controller | 3 x 16 A |

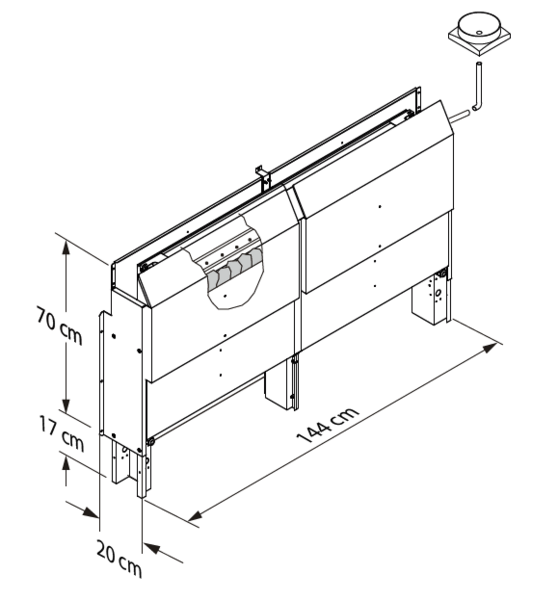

| Device dimensions H/W/D (cm) | 87 / 144 / 20 |
| For Cabin volume (15,0 / 18,0 kW) | 18 - 25 m³ / 24 - 30 m³ |
| Minimum ventilation openings | 2x 60 x 5 cm |
| Weight without stones and packaging (15,0 / 18,0 kW) | 44 kg / 45 kg |
| Stone quantity | 20 kg |
| PEB required | PEB 10 |
| Model | Version | Power | EOS item no. | |
|---|---|---|---|---|
| EOS 46.U XL | 15,0 kW | 947219 | ||
| EOS 46.U XL | 18,0 kW | 947222 |
According to the EOS spare parts list 2026. Prices and delivery times on request.
| Part | For heater power | Qty | EOS item no. | |
|---|---|---|---|---|
| Heating elements | ||||
| Heating element 1500 W | 15,0 kW | 10 | 2001 6437 | |
| Heating element 1500 W | 18,0 kW | 12 | 2001 6437 | |
